Hydron Smart spray micromotor with digital display - Tecniwork

  • Water micromotor with spray technology, display-touch and brushless motor
  • Illuminated tank with up to 1 week's autonomy
  • Light, handy handpiece with automatic pressure clamp
  • High-performance compressor for an even finer spray jet
  • Adjustable speed from 2,000 to 40,000 rpm
Ref: AF955


Log in to visualise prices and purchase

Prices on Tecniwork.it are visible after logging into the website reserved to professionals only.

Purchase securely

Thousands of satified customers

Quick delivery

in 2/3 working days
Product description

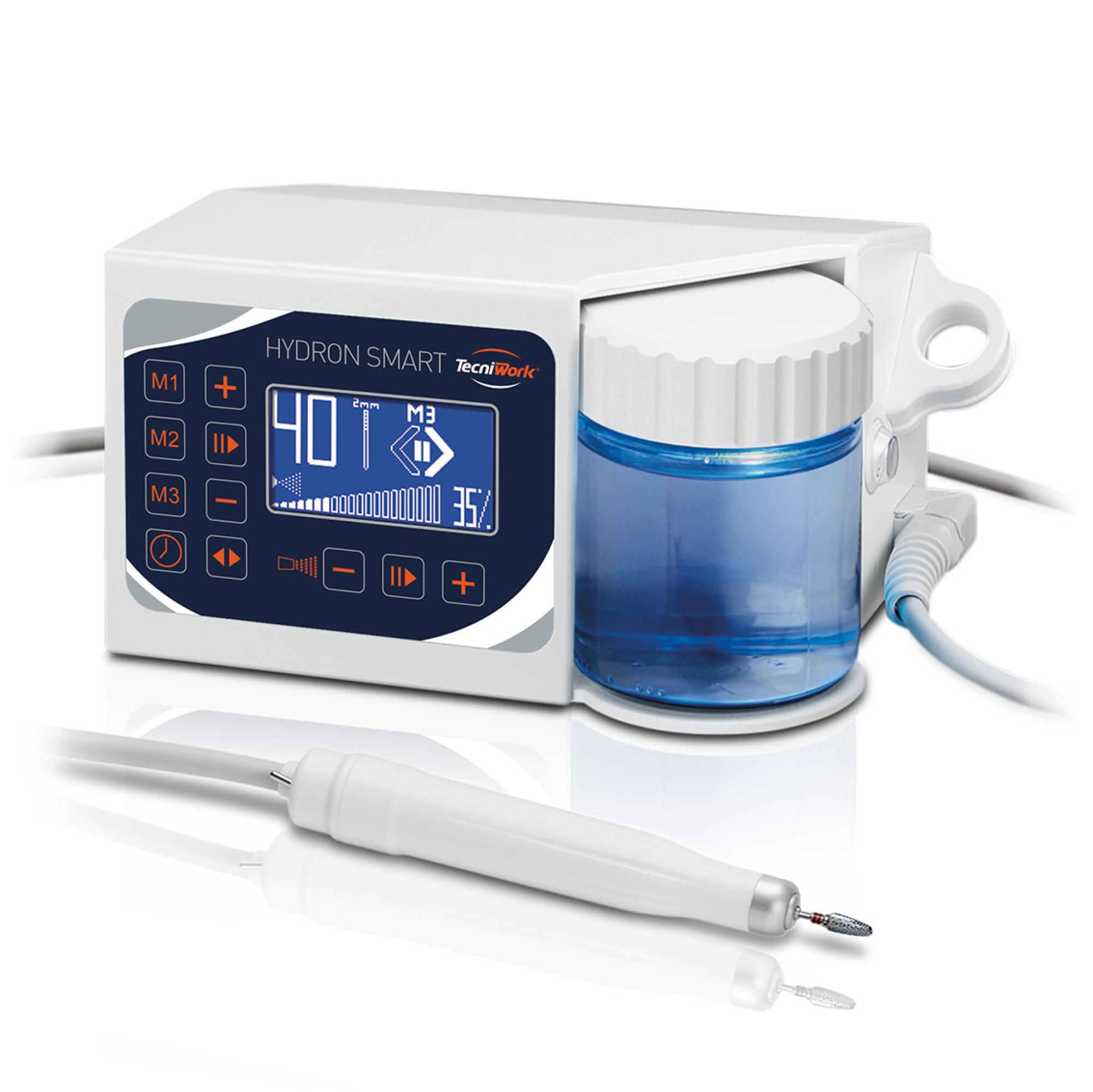

Water micromotor with Spray Technology and user-friendly control unit, with intuitive digital display showing the operating status.

With brushless motor and removable handpiece holder. Allows you to store up to 3 speeds of rotation and spray jet. Lightweight and handy handpiece with automatic pressure clamp for bur change. The illuminated reservoir has a capacity of 410 ml, which, depending on the chosen spray jet and continuous use, has an autonomy of up to one week. It is in the perfect position for removal and insertion with a pull-off/plug-in system that makes refilling quick and easy. The digital display among other information, also indicates the recommended cutter diameter at the set speed.

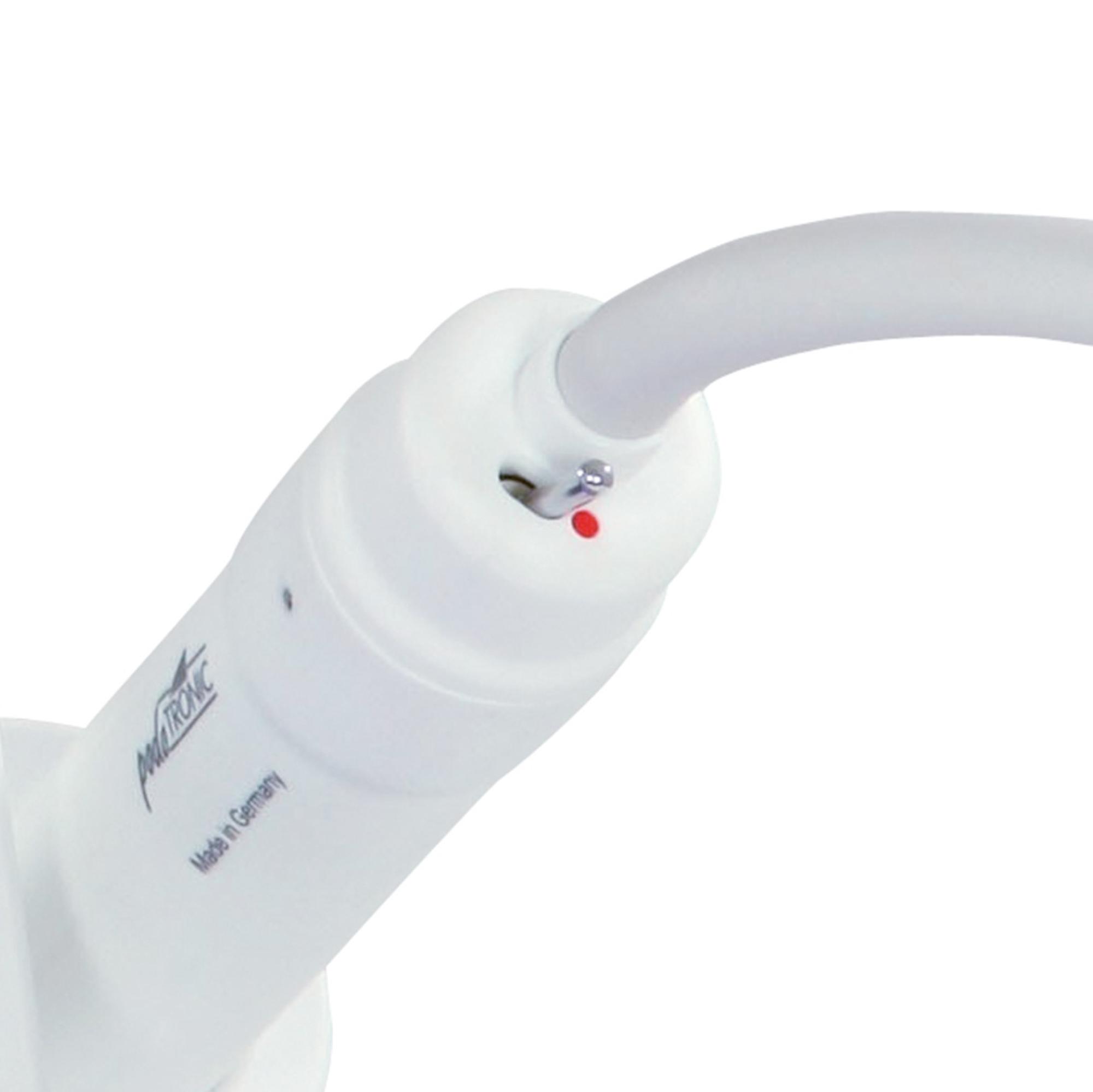

Handpiece

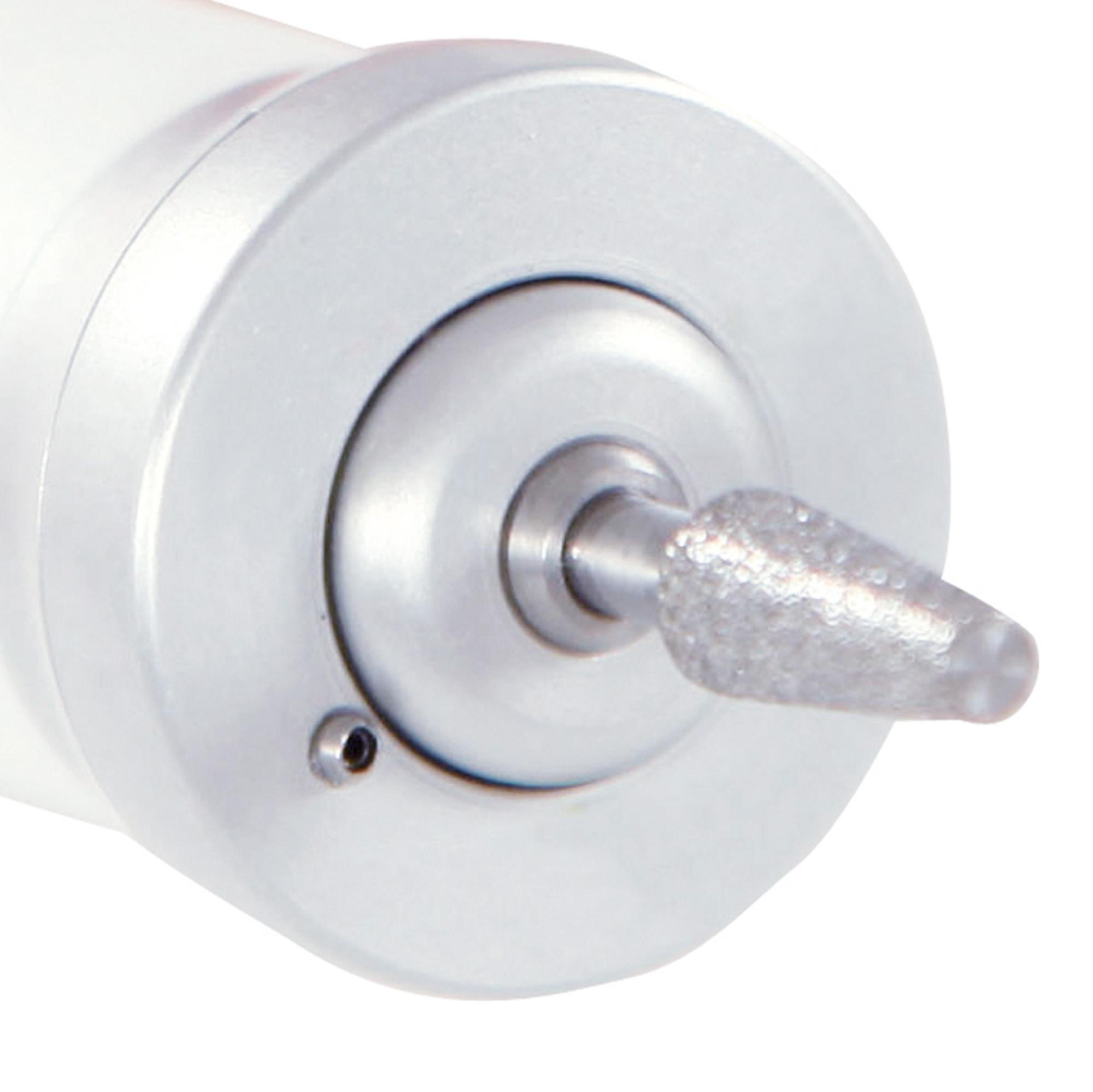

Lightweight, easy-to-handle handpiece with automatic pressure clamp for changing cutters. Handpiece overload protection function: the motor stops when the cutter is pressed down excessively for more than 5 seconds. This momentary blockage of the handpiece is indicated on the display.

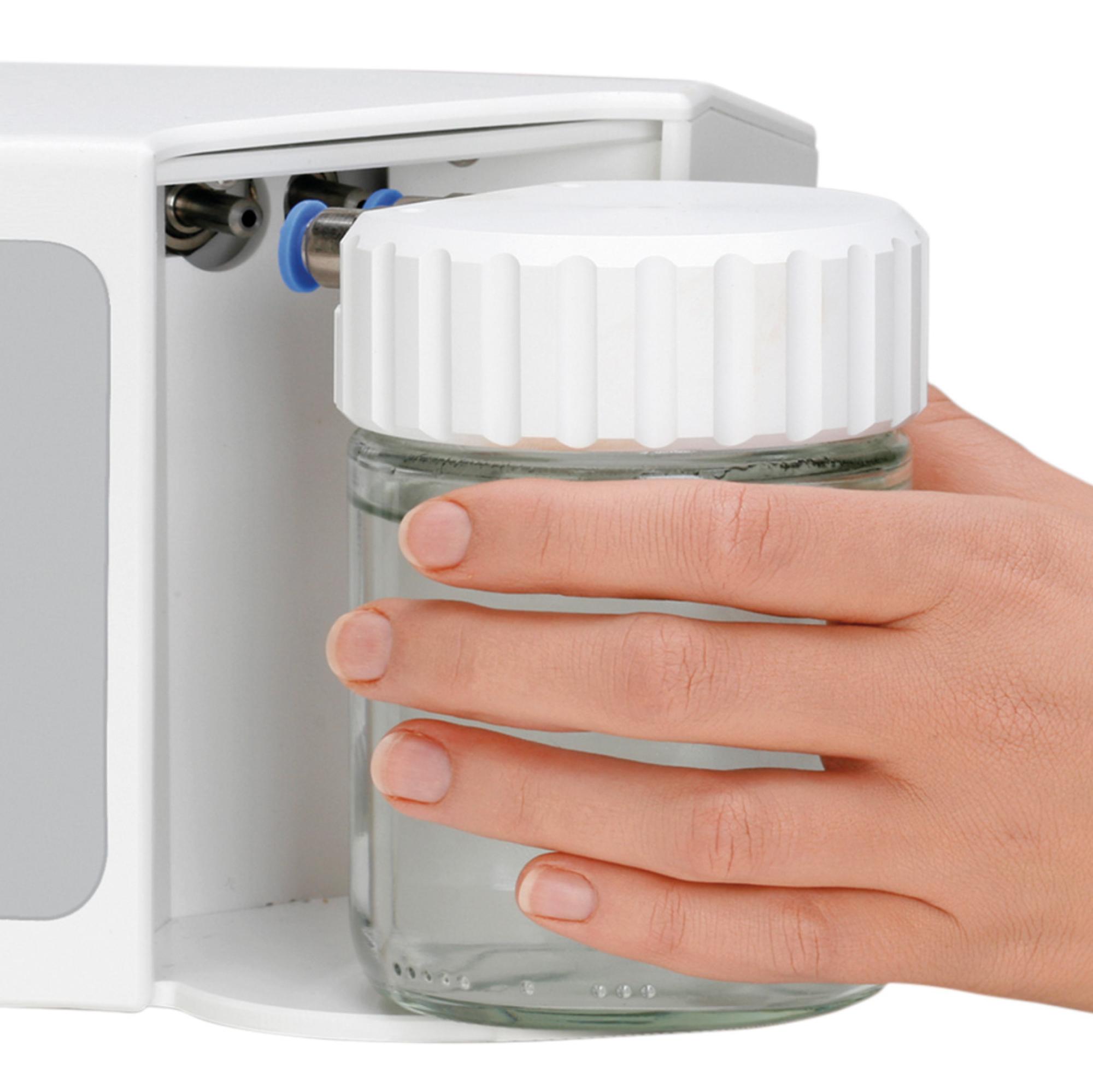

Reservoir

The illuminated reservoir has a capacity of 410 ml, which, depending on the selected jet and continuous use, has an autonomy of up to one week. It is in the perfect position for removal and insertion with a pull-off / plug-in system that makes refilling quick and easy.


Spray

New spray system with dynamic adjustment of the spray intensity via software. The spray jet is even finer, thanks to the new high-performance compressor.

When the control device is switched on, the nozzle tube is automatically cleaned for approx. 5 seconds. If the spray device has been switched off for more than one hour, the device

automatically initiates an increase in pump pressure for 2.5 seconds to ensure flawless performance of the spray function. This process is also shown on the display.

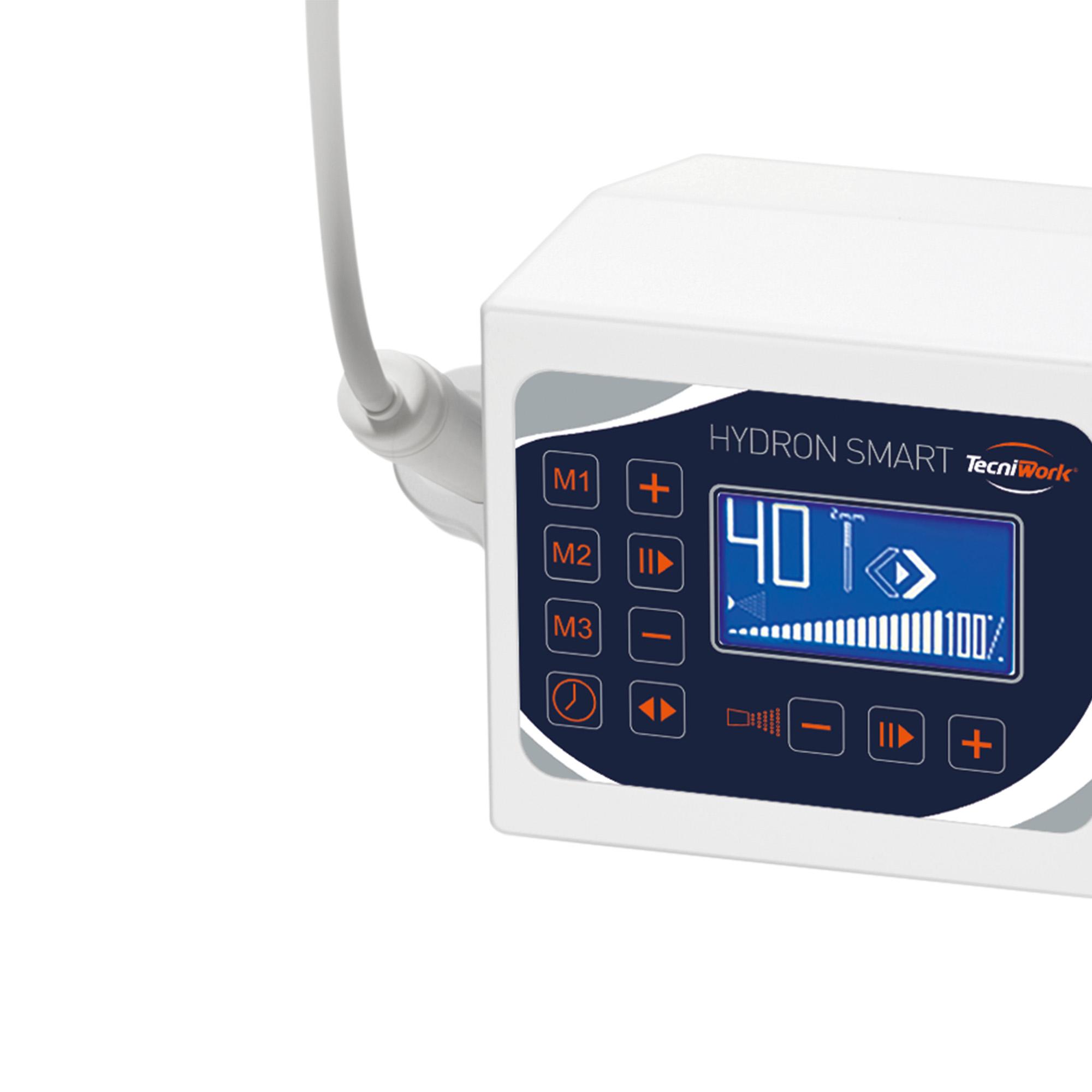

Display

Digital display allowing you to

- set the spray intensity, adjust the speed and reverse the direction of rotation;

- operate the stand-by function for the spray;

- operate the general stand-by of all functions;

- store up to 3 speeds and spray intensities;

- display the working hours of the micromotor.

The display also indicates the recommended cutter diameter at the set speed.


Functional features:

Spray technology

Reversing direction of rotation

Switch on/adjust spray jet

Digital operating display

Brushless induction motor

Soft-touch controls

Speed memory function

Stand-by button handpiece functions

Power switch on handpiece

Handpiece with automatic pressure clamp

Details

Dimensions

W 24.2 x D 13.5 x H 18 cm

Weight: 3 kg

Handpiece length: 11.8 cm

Handpiece diameter: 1.7 - 2.4 - 3.1 cm

Handpiece weight: 112 g


Specifications

Adjustable speed from 2,000 to 40,000 rpm

Power supply voltage: 230V/50Hz

Max power consumption: 105W

Tank capacity: 410 ml


Optional

Ref. AF950P variable speed pedal.

Ref. AF952P start/stop pedal.

Hints

WARNING: ONLY USE DISTILLED WATER to fill the tank.

Never use tap water, flammable liquids (e.g. alcohol) or detergents.


CAUTION: do not use with cutters larger than 13 mm in diameter.
