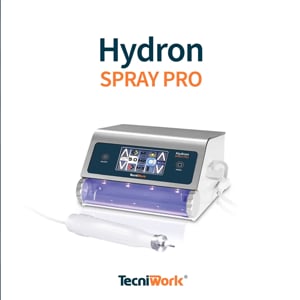

Spray micromotor with digital display and LED handpiece Hydron Spray Pro Tecniwork

  • Water micromotor with spray technology and brushless motor
  • Handpiece with 3 LED illumination and automatic pressure clamp
  • Touch display with 3 frequently used setting memories
  • High-performance compressor for an even finer spray jet
  • Illuminated tank with up to 1 week's autonomy
  • Adjustable speed from 2,000 to 50,000 rpm
Ref: AF954N


Log in to visualise prices and purchase

Prices on Tecniwork.it are visible after logging into the website reserved to professionals only.

Purchase securely

Thousands of satified customers

Quick delivery

in 2/3 working days
Product description

Micromotor with spray technology and touch screen display Hydron Spray Pro by Tecniwork.

Easy-to-use control unit with intuitive digital display showing operating status. With brushless motor and handpiece with 3 LED lighting with adjustable intensity. Removable handpiece holder. Can store up to 3 speeds of rotation and spray jet. Possibility of using the variable speed pedal (optional), which increases rotation speed as foot pressure changes. In addition to the various functions, the display indicates the recommended cutter diameter at the set speed. Illuminated tank with autonomy of up to 1 week.


Handpiece

Handpiece equipped with 3 LED lighting, with adjustable intensity; it has a built-in on/off control, which allows you to start or stop the micromotor functions directly from the handpiece. Lightweight, easy-to-handle handpiece with automatic pressure clamp for changing cutters. Handpiece overload protection function: the motor stops when the burr is pressed excessively for more than 5 seconds. This momentary blockage of the handpiece is indicated on the display.


Tank

The illuminated tank has a capacity of 410 ml, which, depending on the selected jet and continuous use, has an autonomy of approximately one week. It is in the perfect position for removal and insertion with a pull-off / plug-in system that makes refilling quick and easy.


Spray

New spray system with dynamic adjustment of the spray intensity via software. The spray jet is even thinner, thanks to the new high-performance compressor.


Touch Screen display that allows you to:

- set spray intensity, LED light intensity, speed and reverse direction of rotation;

- adjust the contrast of the display brightness;

- operate the stand-by function for the spray;

- operate general stand-by of all functions;

- store up to 3 speeds and spray intensity;

- display the working hours of the micromotor.

The display also indicates the recommended cutter diameter at the set speed.


Functional features:

Spray technology

Reversing direction of rotation

Switch on/adjust spray jet

Digital display

Brushless induction motor

Touch display controls

Speed/spray jet memory function

Stand-by button for handpiece functions

Handpiece with adjustable LED lighting

Power switch on handpiece

Handpiece with automatic pressure clamp

Details

Technical features

Adjustable speed from 2,000 to 50,000 rpm

Power supply voltage: 230V/50Hz

Max power consumption: 105W

Tank capacity: 410 ml


Dimensions

L 28,4 x D 24,2 x H 15,8 cm

Tank capacity: 410 ml

Weight: 3 kg

Handpiece length: 14 cm

Handpiece diameter: 1.6 - 2.2 cm

Handpiece weight: 112 g


Optional

Ref. AF950P variable speed pedal.

Ref. AF952P start/stop pedal.

Hints

CAUTION:  ONLY USE DISTILLED WATER to fill the tank.

Never use tap water, flammable liquids (e.g. alcohol) or detergents.


CAUTION: Do not use with burrs larger than 12 mm in diameter.
